KRS-5 30-60mm
Rubber

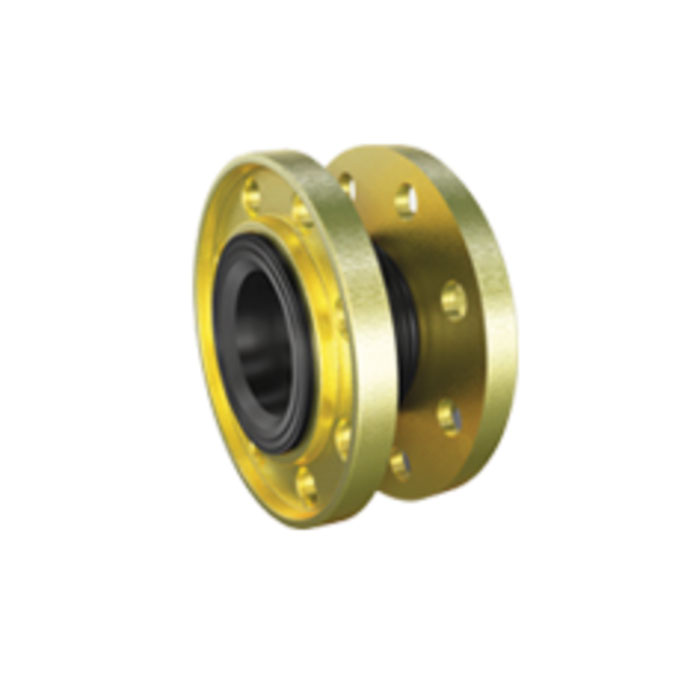

Rubber expansion joints are flexible expansion elements classified under axial compensators and are primarily used to absorb thermal expansions along the axis in pipeline systems. Thanks to their rubber structure with high elasticity, these compensators provide an effective solution for balancing axial movements as well as damping vibrations and noise within the system.
Due to the natural flexibility of rubber material, thermal expansions, pressure fluctuations, and minor axial misalignments in the piping system are effectively tolerated. This feature offers significant advantages, especially in building installations, heating-cooling systems, HVAC applications, pump connections, and various industrial lines.
Piping systems are generally divided into different expansion zones, which are isolated from each other using fixed points. In this way, the movement occurring in each expansion zone is absorbed solely by the axial expansion joint placed in that specific zone. The flexible structure of rubber expansion joints controls these movements while also protecting system components from shocks, vibrations, and expansion-related stresses.
Additionally, rubber expansion joints are favored for their resistance to corrosion, low maintenance requirements, and ease of installation. In this respect, they provide long-term benefits to the user in terms of both technical performance and operating costs.
Technical Information
Standard Production : EPDM – Epidiem (Water, Hot water, Cooling water, steam, acid etc.)
Special Production : NBR – Neopren (Oil, Water with salt, gas, naturalgas, fueloil, compressed air systems, antireeze, composite cooling systems etc.)
Design Pressure : 16 BAR
Design Temperature : 110 C max
Burst Pressure : 45 BAR on 25 C
Standard Flange : Cast Iron (DIN 2501) PN 16
Special Flange : Carbon Steel – Stainless Steel , ISO, BS, VG, SAE, ANSI etc.
Standard Cord : Nylon – Polyamide

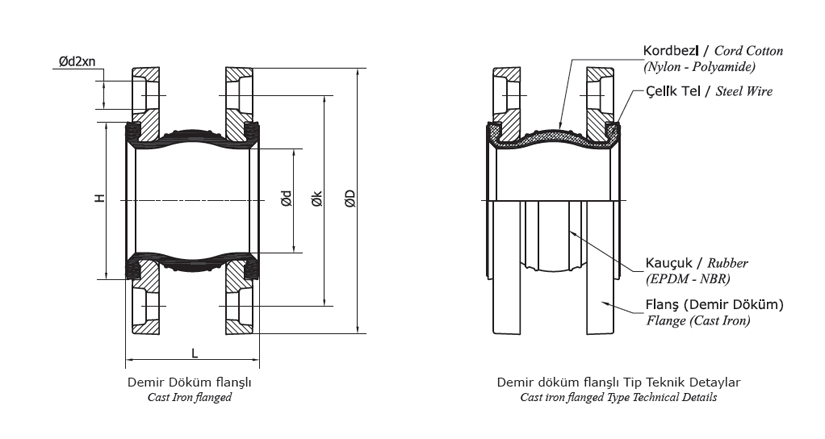

Technical Drawing

Applications
To absorb axial expansions, reduce stress and noise in the system, all machines, all motors, all pumps, industrial applications, exhaust applications, gas and water lines, drinking water lines, etc.
Paint Information
Flanges between DN 25–DN 300 are cadmium plated. For sizes DN 300 and above, specially painted flanges resistant to corrosion are used. It offers high durability and long-lasting use for industrial systems.
Special Note
If requested, the design temperature can be increased to +950°C. Contact us for special requests. Flange tables are in the technical tables section. Product weights have a tolerance of ±10%. Liner is recommended for abrasive fluids.
DN ø | L mm | ø d mm | ø Do mm | +/- AX mm | AX N/mm | KEA cm² | Flange Outer Diameter D mm | Flange Hole Center k mm | Flange Thickness b mm | Flange Hole Number n | Hole Diameter e mm | Approximate Weight Kg Kg |
25 | 120 | 36 | 45 | 10 | 86 | 12 | 115 | 85 | 16 | 4 | 14 | 2,70 |
32 | 130 | 44 | 53 | 15 | 60 | 18 | 140 | 100 | 16 | 4 | 18 | 4,10 |
40 | 130 | 50 | 62 | 15 | 60 | 24 | 150 | 110 | 16 | 4 | 18 | 4,10 |
50 | 150 | 61 | 77 | 17 | 88 | 37 | 165 | 125 | 18 | 4 | 18 | 5,10 |
65 | 160 | 77 | 97 | 19 | 89 | 58 | 185 | 145 | 18 | 4 | 18 | 7,20 |
80 | 170 | 90 | 115 | 24 | 80 | 82 | 200 | 160 | 20 | 8 | 18 | 8,00 |
100 | 175 | 117 | 146 | 24 | 89 | 134 | 220 | 180 | 20 | 8 | 18 | 10,00 |
125 | 195 | 142 | 170 | 26 | 68 | 192 | 250 | 210 | 22 | 8 | 18 | 8,00 |
150 | 220 | 169 | 199 | 26 | 130 | 265 | 285 | 240 | 22 | 8 | 22 | 17,00 |
200 | 220 | 220 | 254 | 36 | 158 | 442 | 340 | 295 | 24 | 12 | 22 | 26,00 |
250 | 235 | 275 | 315 | 27 | 230 | 683 | 405 | 355 | 26 | 12 | 26 | 37,00 |
300 | 320 | 328 | 393 | 23 | 665 | 1019 | 460 | 410 | 28 | 12 | 26 | 52,00 |
350 | 320 | 365 | 419 | 23 | 713 | 1205 | 520 | 470 | 30 | 16 | 26 | 73,00 |
400 | 330 | 410 | 476 | 20 | 812 | 1538 | 580 | 525 | 32 | 16 | 30 | 91,00 |
450 | 340 | 460 | 526 | 20 | 919 | 1897 | 640 | 585 | 32 | 20 | 30 | 117,00 |
500 | 350 | 508 | 569 | 20 | 1009 | 2273 | 715 | 650 | 34 | 20 | 33 | 142,00 |
